How to Use the Cup Chain End Loop and Connector:
Universal Fit:
All the holes on the sides of various cup chain settings, regardless of size or shape, are the same. This ensures that the end loops and cup chain connectors will fit any cup chain you use.
Choosing the Right End Loop:
If you're working with 24ss, 29ss, or 39ss settings, it’s easier to use the small 6x3 end loop. The sharp nose plier tool is perfect for gripping and placing the small end loop even in these smaller settings.
Placing the End Loop or Connector:
Hold the plier tool and gently push it down while moving it from side to side.
You will see that the end loop or connector starts to go through the hole in the setting with ease.
This simple method helps you securely attach the end loop or connector without the need for soldering, making your jewelry creation process smoother and faster.

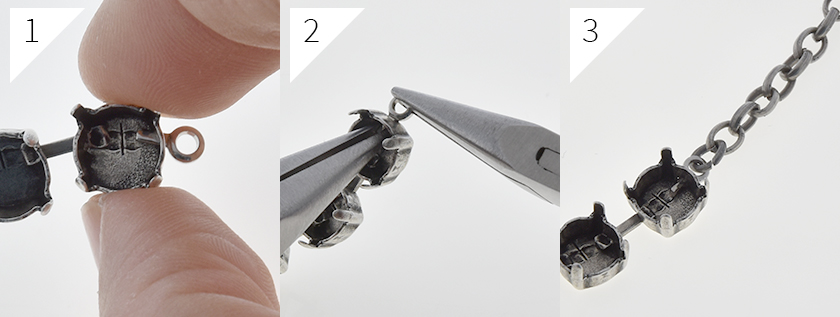

How to Use the End Loop 6x3mm for Cup Chain:
Product:
End Loop 6x3mm - SKU 5000851
1:Slide the End Loop Into the Setting:
Simply slide the end loop through the hole in the cup chain setting. It will slide in effortlessly.
2:Secure the End Loop:
Use plier tools to hold both sides of the end loop.
Give a half twist to the metal bar inside the setting. This twist secures the end loop in place, ensuring it won’t come out of the hole.
3:Connect Elements:
Now that the end loop is securely in place, you can use it to connect chains, clasps, or any other jewelry elements you wish.
This simple technique provides a strong and secure loop at the end of a cup chain, making it easy to customize your jewelry designs.

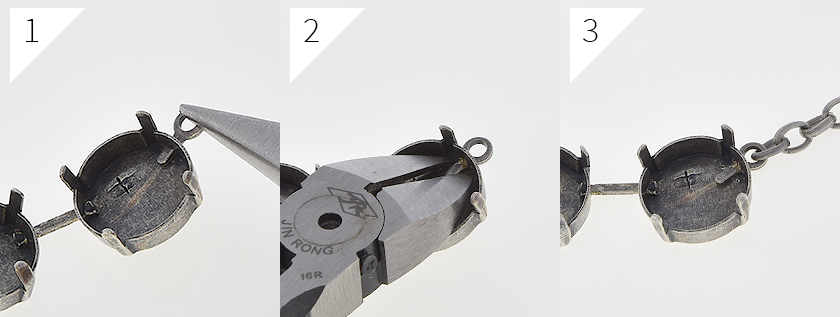

How to Use the End Loop 7x4mm for Cup Chain:
Product:
End Loop 7x4mm - SKU 5000645
1:Insert the End Loop Into the Setting:
Use plier tools to insert the end loop through the hole in the setting. It may be a bit tight, but this ensures the loop sits securely and firmly inside the hole.
2:Secure the End Loop:
Use a cutting or plier tool to pinch the metal bar inside the setting.
Deform the shape of the metal bar so that it tightly holds the end loop in place, preventing it from slipping out of the hole.
3:Connect Jewelry Elements:
Once secured, you can use the end loop to connect chains, clasps, or any other jewelry components, completing your design.
This technique ensures a sturdy and reliable connection for your jewelry creations.

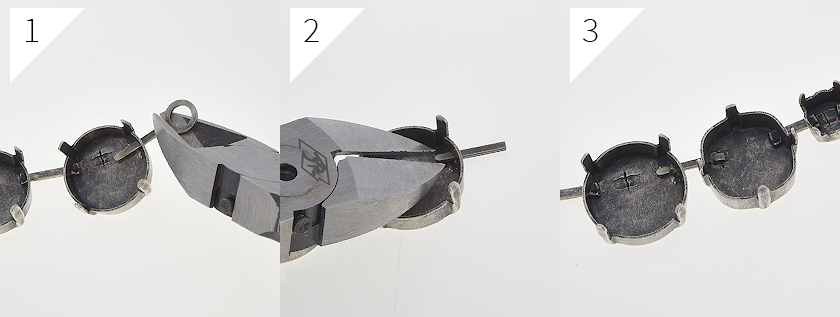

How to Use the Cup Chain Connector:
Product:
Cup Chain Connector - SKU 5003726
1:Insert the Bar Through the Hole:
Insert the bar through the hole in the first cup chain setting. The fit will be tight, ensuring the bar sits securely in place.
The loop at the top of the bar is used for holding during coating, so you can use a cutting tool to remove it after the process.
2:Secure the First Setting:
Use pliers to pinch the metal end of the bar inside the setting. This deforms its shape slightly, ensuring the connector will not slip out.
3:Insert the Bar Into the Second Setting:
Insert the other end of the bar through the hole of the second cup chain setting.
Again, pinch the metal end to secure it in place, ensuring the connector holds both settings tightly together.
This method allows you to easily connect two cup chain parts, creating a seamless and sturdy jewelry design.
